HD1000 Wholesales OEM ODM Home Carbon Monoxide Detector With Relay Output
| Place of Origin | Hubei, China |
|---|---|
| Brand Name | chicheng |
| Certification | CE |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Sets |
| Price | $6.00 - $12.00/Sets |
| Supply Ability | 2000 Set/Sets per Day |
| Network | NBiot | Enclosure Material | ABS |
|---|---|---|---|
| Power Supply | 110/220VAC | Plug | EU, USA Standard |
| Solenoid Valves | Brass Or Aluminum (optional) | Detected Way | Natural Diffusion |
| Usage | Home Carbon Monoxide Detector With Relay Output | Gas | LPG, LNG, CH4, CO, Natual Gas, Combustible Gas Etc. |
| Output | 12V DC Output, Connected With Valve | Warranty | Free Calibration And Free Warranty Within 2 Years |

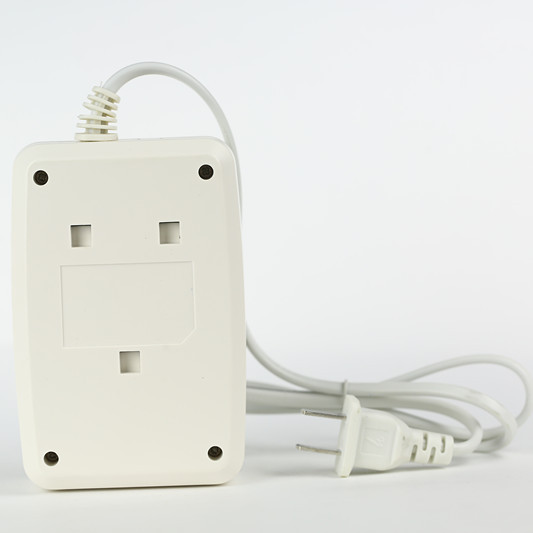

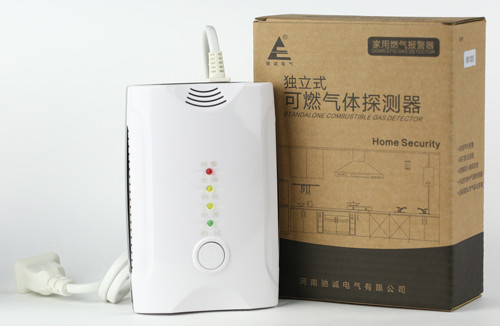

HD1000 Home Carbon Monoxide Detector With Relay Output
Home Carbon Monoxide Detector product description
This detector is applied in detecting combustible gas LPG, methane, CO in the air at home. Once the gas
concentration is over the pre-set alarm value,the device will send out audible-visual alarm to remind
people to take safety measures or drive the ventilation device to prevent the potential fire accident.
Home Carbon Monoxide Detector product features
- Advanced catalytic sensor
- Electro-chemical CO sensor
- Professional low profile design
- With special circuit (MCU processing control and SMT manufacture Technology)

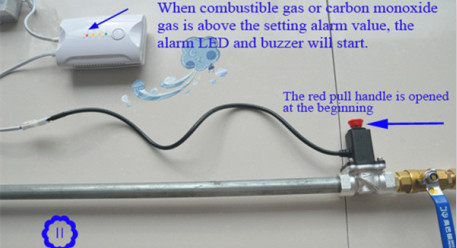

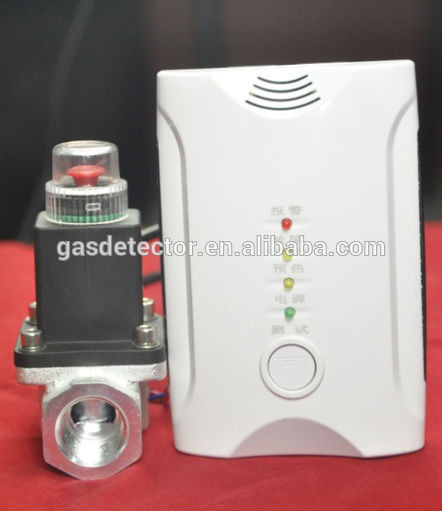

- Direct connection to a solenoid valve

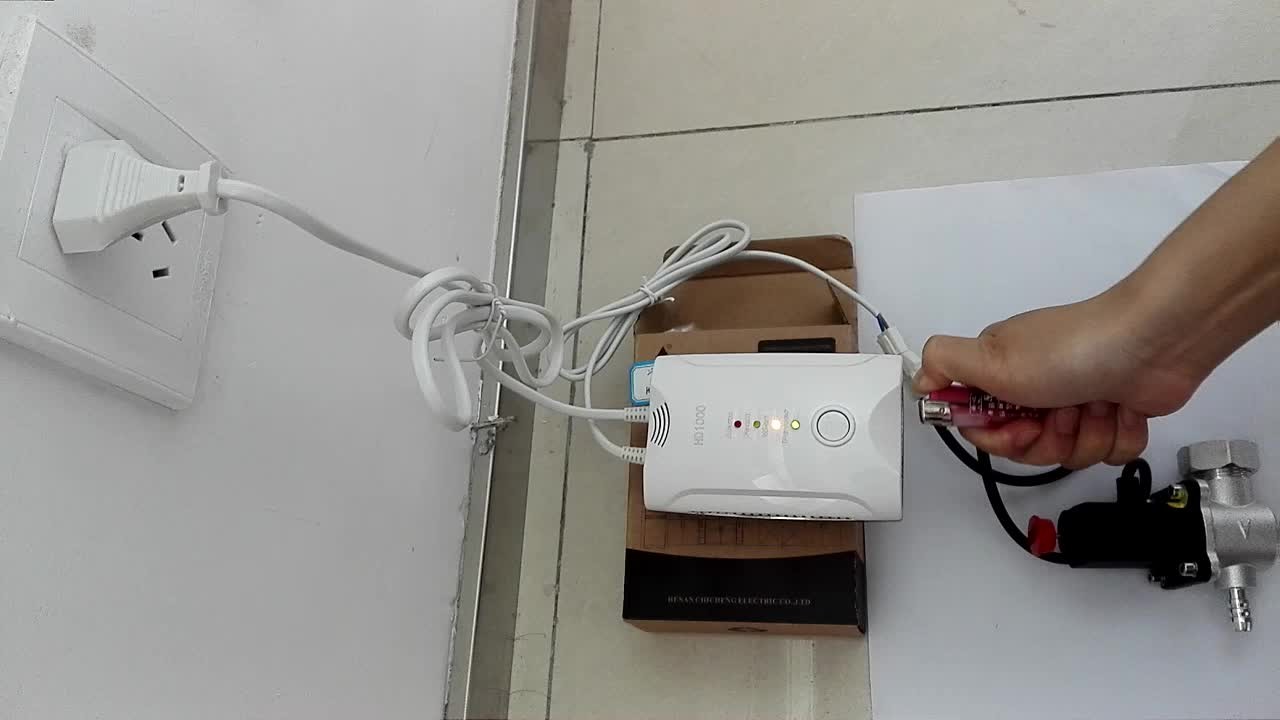

Installation: Unit plugs directly into any wall outlet
Home Carbon Monoxide Detector applications
Home Carbon Monoxide Detector product specification
| Model | HD1000 |
| Detect gas | LPG, natural gas, LNG and carbon monoxide (CO) |
| Detecting principle | Advanced semiconductor sensor & electro-chemical CO sensor |
| Setting Alarm | 7%LEL for natural gas/LPG, 100ppm/CO |
| Wiring | plug-in |
| Accuracy | +/-3%LEL |
| Audible alarm level | ≥80dB |
| Response time | T90≤30s |
| Operating voltage | AC220V/110V ±15% (as per different electric spec) |
| Power consumption | 2.5W |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 120mm (L)×82mm(W)×45mm(H) |
| Weight | 230g |
| Lifetime | 5 Years |
| Warranty | 2 Years |
Home Carbon Monoxide Detector product details
Company introduction
Product overview:
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
Home Carbon Monoxide Detector packing & delivery
Delivery: Sample order in stock and 3-7 working days for bulk production.
Payment: You can pay for the order via T/T, Western Union, PayPal & Money Gram.
Shipping: DHL, TNT, UPS, FEDEX, EMS, CHINA AIR POST.
You can also choose your own shipping forwarder.
FAQ:
1. Can i have a sample order?
A:Yes, you are welcome to have sample to test and check the quality.
2. What is the lead time?
A: Sample needs 1-3 days, mass production time needs 7-15 days for order less than 5000 pcs.
3. Do you have any MOQ limit?
A: We don’t have a MOQ limit, 1 pc are also welcome.
4. Do you offer guarantee for the products?
A: Yes, we offer one or two year guarantee for the products.
