Home LPG Natural Gas Detector with Manipulator or Shut-Off Valve
| Place of Origin | Henan, China |
|---|---|
| Brand Name | CCE |
| Certification | CE |
| Model Number | HD1000 |
| Minimum Order Quantity | 50 Sets |
| Price | $6.00 - $12.00/Sets |
| Packaging Details | in standard export carton package. |
| Supply Ability | 2000 Set/Sets per Day |
| Usage | Home LPG Natural Gas Detector | MOQ | 100 |
|---|---|---|---|
| Enclosure Material | ABS | Power Supply | 110/220VAC |
| Plug | EU, USA Standard | Solenoid Valves | Brass Or Aluminum (optional) |
| Detected Way | Natural Diffusion | Gas | LPG, LNG, CH4, CO, Natual Gas, Combustible Gas Etc. |
| Output | 12V DC Output, Connected With Valve | Warranty | Free Calibration And Free Warranty Within 2 Years |
| Port | Tianjin, Qingdao, Shanghai, HK Etc. |

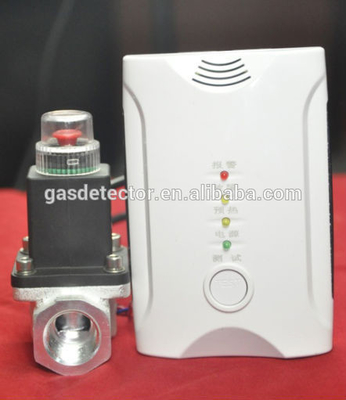

HD1000 Home LPG Natural Gas Detector with Manipulator or Shut-Off Valve
LPG Gas Leak Detector Alarm product description
This detector is applied in detecting combustible gas LPG, methane, CO in the air at home. Once the gas
concentration is over the pre-set alarm value,the device will send out audible-visual alarm to remind
people to take safety measures or drive the ventilation device to prevent the potential fire accident.
LPG Gas Leak Detector Alarm product features
- Advanced catalytic sensor
- Electro-chemical CO sensor
- Professional low profile design
- With special circuit (MCU processing control and SMT manufacture Technology)
- Direct connection to a solenoid valve
Installation: Unit plugs directly into any wall outlet
LPG Gas Leak Detector Alarm product applications
LPG Gas Leak Detector Alarm product specification
| Model | HD1000 Home CH4 and CO Detector |
| Detect gas | LPG, natural gas, LNG and carbon monoxide (CO) |
| Detecting principle | Advanced semiconductor sensor & electro-chemical CO sensor |
| Setting Alarm | 7%LEL for natural gas/LPG, 100ppm/CO |
| Wiring | plug-in |
| Accuracy | +/-3%LEL |
| Audible alarm level | ≥80dB |
| Response time | T90≤30s |
| Operating voltage | AC220V/110V ±15% (as per different electric spec) |
| Power consumption | 2.5W |
| Temperature | -10℃~+55℃ |
| Humidity | ≤95%RH (no condensation) |
| Atmospheric pressure | 86kPa~106kPa (indoor). |
| Size | 120mm (L)×82mm(W)×45mm(H) |
| Weight | 230g |
| Lifetime | 5 Years |
| Warranty | 2 Years |

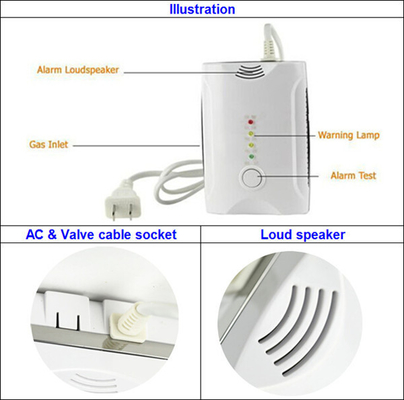

LPG Gas Leak Detector Alarm product details
Company introduction
Product overview:
Industrial use: Portable gas detectors, fixed gas detectors, gas leak automation control panel, etc
Domestic use: household gas detectors, smoke detectors, safety protection instrument, etc.
Related products
LPG Gas Leak Detector Alarm packing & delivery
