QB2000N fixed hydrocarbon gas detector for toxic gas leakage
| Place of Origin | Henan, China |
|---|---|
| Brand Name | chicheng |
| Model Number | QB2000N |
| Price | $300.00 - $350.00/Units |
| Packaging Details | cartons |
| Supply Ability | 2000 Unit/Units per Week |
| Special Features | Waterproof / Weatherproof | Sampling Method | Diffusion |
|---|---|---|---|
| IP Grade | IP66 | Accuracy | 3% F.S |
| Detecting Gas | ,H2,NH3,CO2 Etc | Power Supply | 16-30V DC |
| Protection Grade | Ex D IIC T6 Gb | Mounting Screw Thread | M20 X 1.5O Or G1/2 |
| Sensitivity | 1ppm | Product Name | Fixed Hydrocarbon Gas Detector For Toxic Gas Leakage |
| Weight | 1200g | Port | Chinese Main Port |
QB2000N fixed hydrocarbon gas detector for toxic gas leakage
QB2000n Fixed Hydrogen Gas Module Monitor Transmitter (0-100%LEL) can continusously measure the gas concentration of toxic,combustible and oxygen, it sampling gas by natural diffusion, it also can output RS485 or 4-20mA signal to control pannel, the relay signal be used to activate the fan system.
Features:
♦ Relay output for connecting external device
♦ Modular design is easy to replace and calibrate the sensor
♦ two alarm levels
♦ dust cover offers effectively protection to the sensor
Technical specification:
| Model | QB2000N fixed hydrocarbon gas detector for toxic gas leakage |
| Sensor type | electro-chemical sensor |
| Detected gas | hydrogen sulfide H2S,SO2,C2H4, |
| Resolution | 1ppm |
| Accuracy | 3%F.S |
| Response time | T90<30s. |
| Operating Temperature | -20℃~+60℃ |
| Humidity | < 90%RH(no condensation) |
| Working current | ≤50 Ma |
| Output signal | 4 to 20mA standard signal(RS485 output optional) |
| Power supply | 16~30V DC. |
| Type of cable | 3 or 4 active wires screened between detector and centralized unit. 3×1.5mm2 for 4-20mA signal OR 4*1.5mm2 for RS485 signal, external diameter ≥10mm |
| Transmition Distance | ≤1000meter |
| Mounting Screw thread | M20*1.5 or G1/2. |
| Alarm indication | ≥85dB the higher of buzz frequency,the higher gas concentration is |
| Anti-explosion Class | Ex d IICT6Gb |
| IP grade | IP66 |
| Weight | 1200g |
Gas measured:
| gas | range | resolution | response time | sensor life |
| Combustible | 0-100% LEL | 1% LEL | <30S | 3-5 years |
| O2 | 0-25% VOL | 0.1% VOL | <30S | 2-3 years |
| CO | 0-1000 PPM | 1 PPM | <30S | 2-3 years |
| H2S | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| H2 | 0-1000 PPM | 1 PPM | <30S | 2-3 years |
| CL2 | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| NH3 | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| SO2 | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| NO | 0-250 PPM | 1 PPM | <30S | 2-3 years |
| NO2 | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| HCN | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| ETO | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| HCL | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| CH2=CHCN | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| O3 | 0-100 PPM | 1 PPM | <30S | 2-3 years |
| CLO2 | 0-20 PPM | 0.1 PPM | <30S | 2-3 years |
| CO2 | 0-5000 PPM | 1 PPM | <30S | 3-5 years |
1. Carton box 22*13*8cm, G.W.: 1.8kg
2. Shipping by: DHL, TNT, FEDEX, EMS and BY SEA if necessary
packing of diffusion type industrial fixed hydrogen sulfide gas detector with explosion proof stainless steel case
1, OEM
2, Development and design according to customers requirements.
3, Delivery on time.
4, 1 year warranty

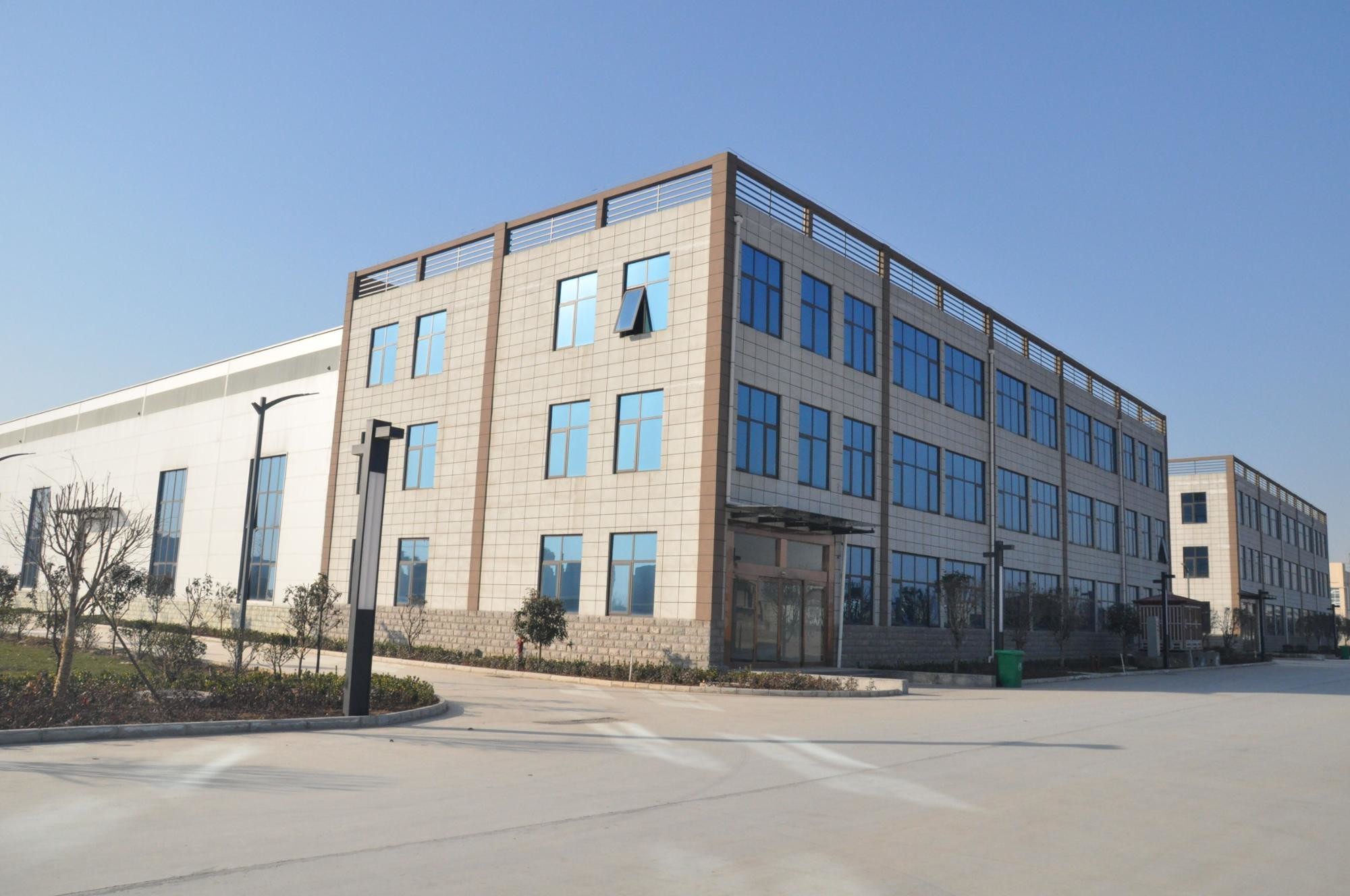

1, Founded in 2004, located in zhengzhou, henan province, central China.
2, R&D team: 50 engineers
3, Annual sales: 25000 sets portable / fixed gas detectors and controll pannels (2015)
4, ISO9001-2000, CE
5, Main products: home gas detector, portable and fixed gas detectors, multi channel gas detection controllers.
1, Payment terms: T/T, western union, paypal, L/C, money gram
2, Delivery: 2-3 working days
3, Calibration: one year, you can calibrate it in your country or send the sensor back to us.
